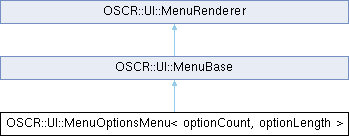

Inheritance diagram for OSCR::UI::MenuOptionsMenu< optionCount, optionLength >:

Public Member Functions
	MenuOptionsMenu (char const *menuTitle, MenuOptions< optionCount, optionLength > &menuEntries)
	Create a menu interface from an array of choices.
	MenuOptionsMenu (__FlashStringHelper const *menuTitle, MenuOptions< optionCount, optionLength > &menuEntries)
Public Member Functions inherited from OSCR::UI::MenuBase
	MenuBase (char const *menuTitle, uint8_t entryCount, MenuMode menuBaseMode, uint8_t entryLength=((uint8_t) 31))
	MenuBase (__FlashStringHelper const *menuTitle, uint8_t entryCount, MenuMode menuBaseMode, uint8_t entryLength=((uint8_t) 31))
Public Member Functions inherited from OSCR::UI::MenuRenderer
	MenuRenderer (char const *menuTitle)
	MenuRenderer (char const *menuTitle, uint16_t entryCount)
	MenuRenderer (__FlashStringHelper const *menuTitle)
	MenuRenderer (__FlashStringHelper const *menuTitle, uint16_t entryCount)
uint16_t	getPage ()
uint16_t	getPageCount ()
bool	isLast ()
uint16_t	getPageEntryCount ()
uint16_t	getPageEntryOffset ()
uint16_t	getEntryIndex ()
void	gotoPage (uint16_t page)
void	navNext ()
void	navPrev ()
void	nextPage ()
void	prevPage ()
void	render ()
uint16_t	select ()

Protected Member Functions
void	onPageChange ()
Protected Member Functions inherited from OSCR::UI::MenuBase
void	setup ()
bool	onConfirm ()
Protected Member Functions inherited from OSCR::UI::MenuRenderer
void	navigate (NavDir direction)
void	onSelectionChange ()

Protected Attributes
__FlashStringHelper const *	templateString
MenuOptions< optionCount, optionLength > *	entries
Protected Attributes inherited from OSCR::UI::MenuBase
MenuMode	menuMode
uint8_t	entryLengthMax
Protected Attributes inherited from OSCR::UI::MenuRenderer
char	title [30] = {}
uint16_t	count
uint16_t	totalPages
uint16_t	pageEntriesLast
uint16_t	currentPage = 1
uint16_t	selection = 0
bool	rendered = false
char	pageEntries [((uint8_t) 32)][((uint8_t) 31)]

Constructor & Destructor Documentation

◆ MenuOptionsMenu()

template<uint8_t optionCount, uint8_t optionLength>

OSCR::UI::MenuOptionsMenu< optionCount, optionLength >::MenuOptionsMenu	(	char const *	menuTitle,
		MenuOptions< optionCount, optionLength > &	menuEntries )

Create a menu interface from an array of choices.

Parameters

menuTitle	A flash string to use for the menu title.
menuEntries	An instance of MenuOptions ready for use.

template<uint8_t optionCount, uint8_t optionLength>

void OSCR::UI::MenuOptionsMenu< optionCount, optionLength >::onPageChange ( )

protectedvirtual

The documentation for this class was generated from the following files:
